DCB-420 Double Wire Binding Machine

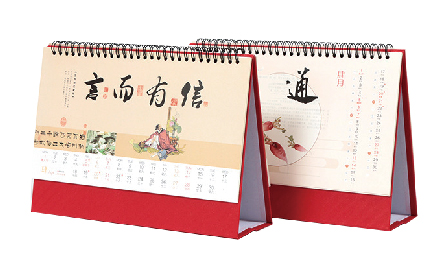

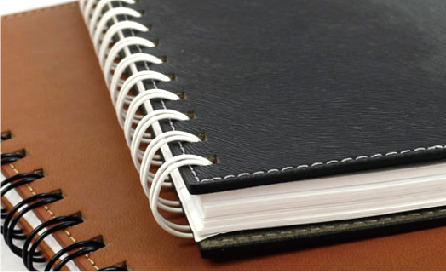

Mainly used for notebooks, calendars,desk calendars binding. It is convenient debugging & easy operation. No need to change binding mold for all sizes from 1/4” - 1 1/4” double loop wire spool.

Parameters

Mainly used for notebooks, calendars,desk calendars binding. It is convenient debugging & easy operation. No need to change binding mold for all sizes from 1/4” - 1 1/4” double loop wire spool.

产品详情

细节

Advantages

■ Working Speed up to 1,000-1,500 books per hour.

■ Convenient debugging & easy operation.

■ No need to change binding mold for different wire diameter.

■ Automatic cutting & closing & conveying.

Technical data

Item	Specification
Model No.	APM-420
Max. Punching size for cover	285 * 285mm
Min. Punching size for cover	148 * 120mm
Max. width of inner papers & PP sheet	420 * 420mm
Min. width of inner papers & PP sheet	Type A, B: 148 * 120mm Type C: 70 * 100mm
Max. punching thickness	2.0mm
Max. paper placing height	600mm
Max. working speed (inside)	7,200 times/hour
Max. working speed (cover)	7,200 times/hour
Punching paper specifications	50-250g/㎡
Paper way	Lifting and moving conveyance are optional
The power supply	AC380V/3ph/50hz/3kw
Air compressor (customer provided)	0.37 kw
The compressed air	0.4-0.6 Mpa
Machine Dimension (LWH)	2200 * 1000 * 1300 mm
Machine weight	800 KGS
