PS420 Plastic Spiral Forming & Binding Machine

The plastic spiral forming and binding machine is another masterpiece of our company incorporating advanced international technology with innovative improvements. It integrates multiple processes such as forming spiral, inserting, cutting and bending. It’s suitable for mass production of plastic ring books and notebooks.

◎Reasonable Layout & Optimized Structure: Designed for high-speed and stable operation, the dual-station setup significantly improves binding efficiency.

◎Integrated Spiral Forming Process: Direct feeding plastic wire greatly reduces material costs and minimizes waste during turnover loss.

◎Patented Binding Mechanism: Ensures smooth handling medium to thick products while providing greater stability for thin to medium-thickness products.

◎Optional small-size dual-books simultaneous binding for improving higher production efficiency.

Parameters

◎Reasonable Layout & Optimized Structure: Designed for high-speed and stable operation, the dual-station setup significantly improves binding efficiency.

◎Integrated Spiral Forming Process: Direct feeding plastic wire greatly reduces material costs and minimizes waste during turnover loss.

◎Patented Binding Mechanism: Ensures smooth handling medium to thick products while providing greater stability for thin to medium-thickness products.

◎Optional small-size dual-books simultaneous binding for improving higher production efficiency.

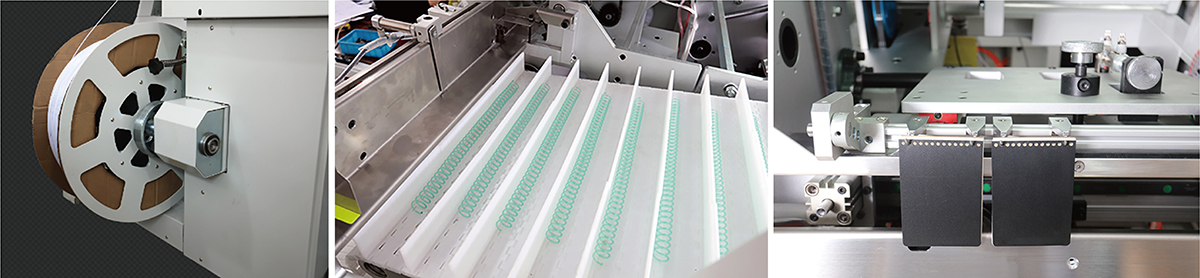

Product Detail

Inner dia (mm)	Max binding thickness (mm)	Wire dia (mm)	Recommended hole dia (mm)
8	4.5	1.6	Φ4.5
10	6	1.6	Φ4.5
12	8	1.6	Φ4.5
14	10	1.8	Φ5
16	12	1.8	Φ5
18	13.5	2.0	Φ5
20	15.5	2.0	Φ5
22	17	2.2	Φ6
25	20	2.2	Φ6
28	23	2.4	Φ6

Technical data

Item	Specification
Binding range	Binding edges: 72--420mm Unbound edges: 72--300mm
Binding ring dia.	8–28mm
Optional range of binding pitch	4:1 (6.35mm) 3:1 (8.47mm) standard configuration Other pitch can be customized
Production speed	Up to 800 books per hour
Size（LWH）	2.0m×1.6m×1.7m
Weight	1000kg
Power	3PH 380V 8KW
Air source	5-8kgf
