FD-400PBF Single Spiral Wire Punching and Binding Machine

Perfect machine used for printing factory to produce single wire notebook job. It includes automatic stratified book sending, automatic stratified hole punching, automatic book school hole, automatic binding, automatic coil forming, automatic collection.

Parameters

Single Spiral Wire Punching and Binding Machine

Details

Advantages

■ This machine has the functions of automatic layered feeding, automatic layered punching, automatic book hole calibration, automatic book feeding and binding, automatic coil forming, and automatic book collection.

■ This machine only needs 1-2 ordinary operators to complete.

■ High-quality punching mold, the thickest one can punch 6mm.

■ Notebooks and desk calendars with cover and back cover larger than the inner pages can automatically identify the size of the cover and back cover in layers and perform punching and binding in batches.

■ Automatic coil calibration function.

■ Automatic fault prompt function.

■ L-type scissor locking or G-type scissor locking can be selected.

Technical data

Item	Specification
Model No.	PBS-420
Work Speed	800-1,800 books/hour
Punch Thickness per time	1-6mm
Max. Punch Thickness	15mm
Max. Punch Times	5 times
Punching Die Type	Single-row
Max. Binding Thick	16mm
Spiral Dia	8mm – 25mm
Max binding width	420mm * 420mm
Min binding width	70mm×105mm
G type back hook scissors range	14mm – 25mm
L type common hook scissors range	8mm – 25mm
Spiral hole pitch optional range	5mm, 6mm, 6.35mm, 8mm, 8.47mm
Air pressure	0.5-0.8Mpa (3KW)
Power	380v/3ph/6KW
Overall Dimension (LWH)	6000 * 1300 * 1700 MM
Net Weight	1,800 KGS

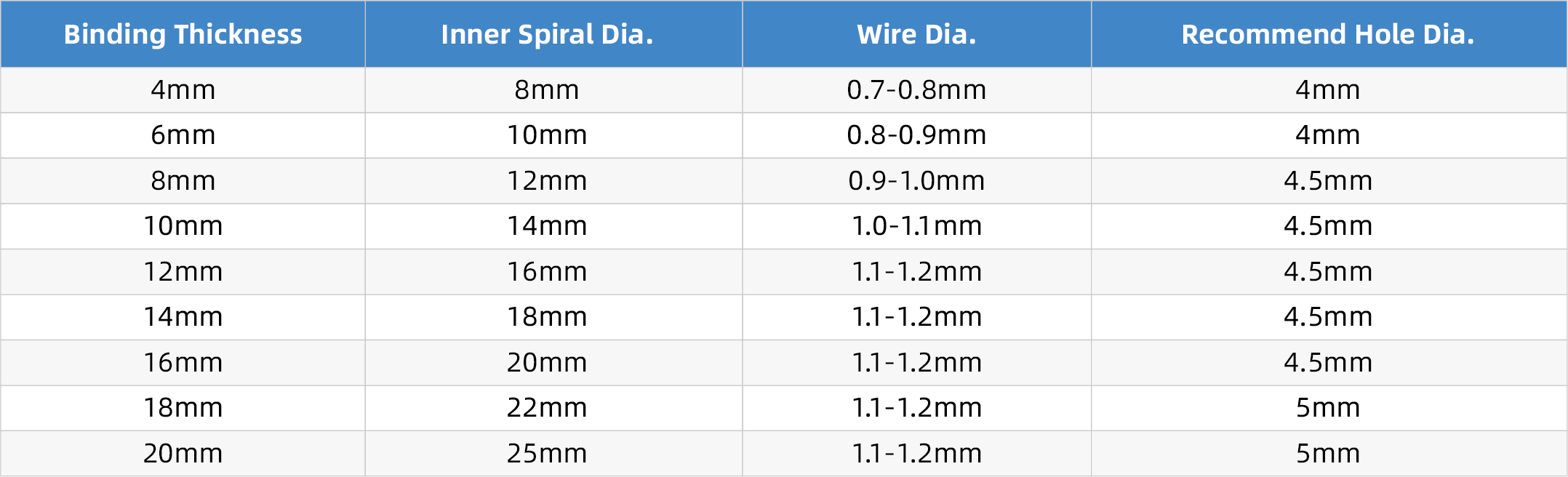

Specification

Binding Thickness	Inner Spiral Dia.	Wire Dia.	Recommend Hole Dia.
4mm	8mm	0.7-0.8mm	4mm
6mm	10mm	0.8-0.9mm	4mm
8mm	12mm	0.9-1.0mm	4.5mm
10mm	14mm	1.0-1.1mm	4.5mm
12mm	16mm	1.1-1.2mm	4.5mm
14mm	18mm	1.1-1.2mm	4.5mm
16mm	20mm	1.1-1.2mm	4.5mm
18mm	22mm	1.1-1.2mm	5mm
20mm	25mm	1.1-1.2mm	5mm
