PBW-580S Double Wire Punching and Binding Machine

Could be used for mass-production of desk calendars, wall calendars,exercise-books, wire-o books, etc.

It includes paper separation, punching, closing and collection ALL IN ONE MACHINE. And with the optional of collator, calendar hanger inserting device, hard-cover manual punch, it can improve more production efficiency for customers.

Parameters

Could be used for mass-production of desk calendars, wall calendars,exercise-books, wire-o books, etc.

Product details

Details

Advantages

■ This machine has the functions of automatic layered feeding, automatic layered punching, automatic cover punching, automatic book hole calibration, automatic book binding, and automatic book collection.

■ This machine only needs 1-2 ordinary operators to complete.

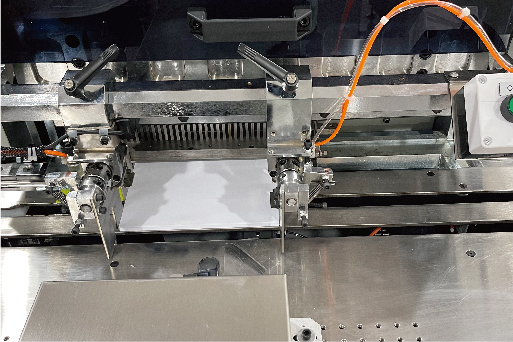

■ High-quality punching mold, the thickest one can punch 6mm.

■ To change the specifications of the punching mold, you only need to replace the punching needle without removing the screws.

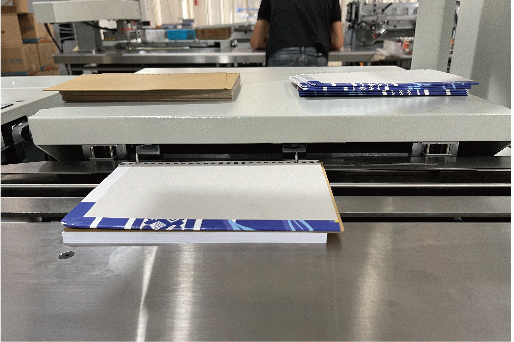

■ For notebooks and desk calendars whose cover and back cover are larger than the inner pages, the size of the cover and back cover can be automatically identified in layers and punched and bound in batches.

■ The function of automatic coil calibration.

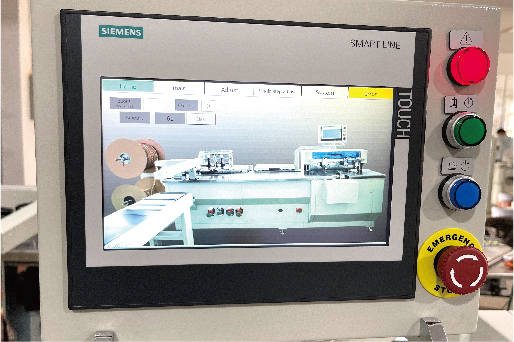

■ Automatic fault prompt function.

Technical data

Item	Specification
Model No.	FD-520PB
Working speed	800-2,000 books/hour
Punching Thickness (one-time)	1-6mm
Max. Punching Thickness	16mm
Max. punch times for one book	5 times
Punching Die Type	Double-row
Max. size of paper	520mm * 800mm
Min. size of paper	70mm * 105mm
Max. Book size for feeding belt	420mm * 420mm
Wire Diameter	1/4'' -3/4'' (3:1 & 2:1)7/8' & 1' can be customized
Binding Length	100-520mm
Air pressure (excluded)	0.7-0.8Mpa
Electric power	380v/3ph/60Hz/4.5KW
Machine Dimension (LWH)	4800mm * 1800mm * 1600mm
Net weight	1,800 KGS
Gross weight	2,000 KGS

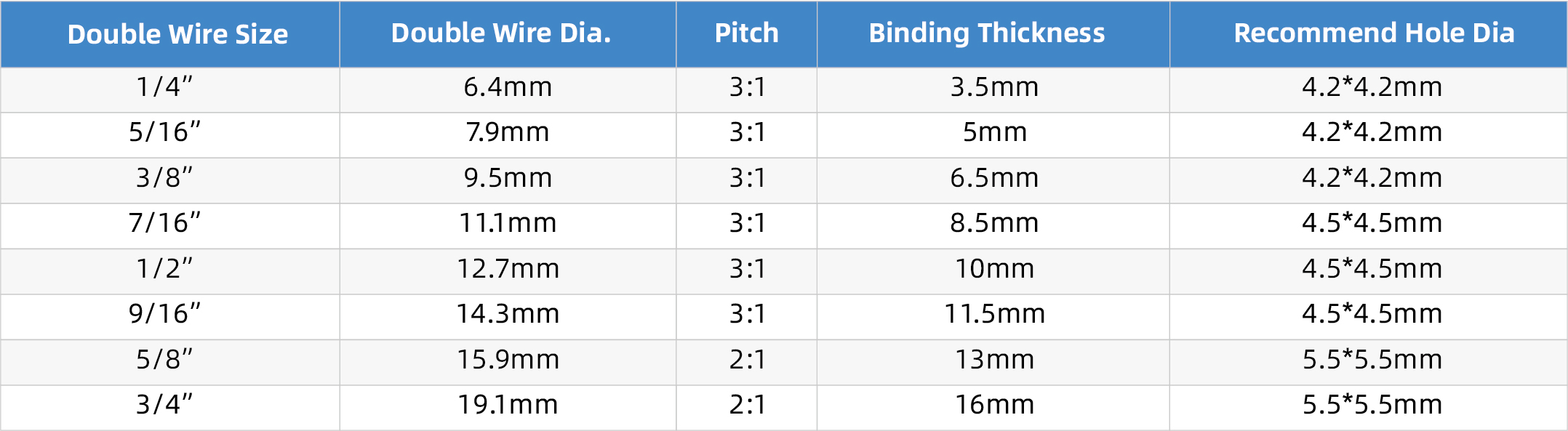

Specification

Double Wire Size	Double Wire Dia.	Pitch	Binding Thickness	Recommend Hole Dia
1/4''	6.4mm	3:1	3.5mm	4.2*4.2mm
5/16''	7.9mm	3:1	5mm	4.2*4.2mm
3/8''	9.5mm	3:1	6.5mm	4.2*4.2mm
7/16''	11.1mm	3:1	8.5mm	4.5*4.5mm
1/2''	12.7mm	3:1	10mm	4.5*4.5mm
9/16''	14.3mm	3:1	11.5mm	4.5*4.5mm
5/8''	15.9mm	2:1	13mm	5.5*5.5mm
3/4''	19.1mm	2:1	16mm	5.5*5.5mm
